Spring Hill FD-Heavy Rescue #860

Spring Hill FD-Heavy Rescue #860

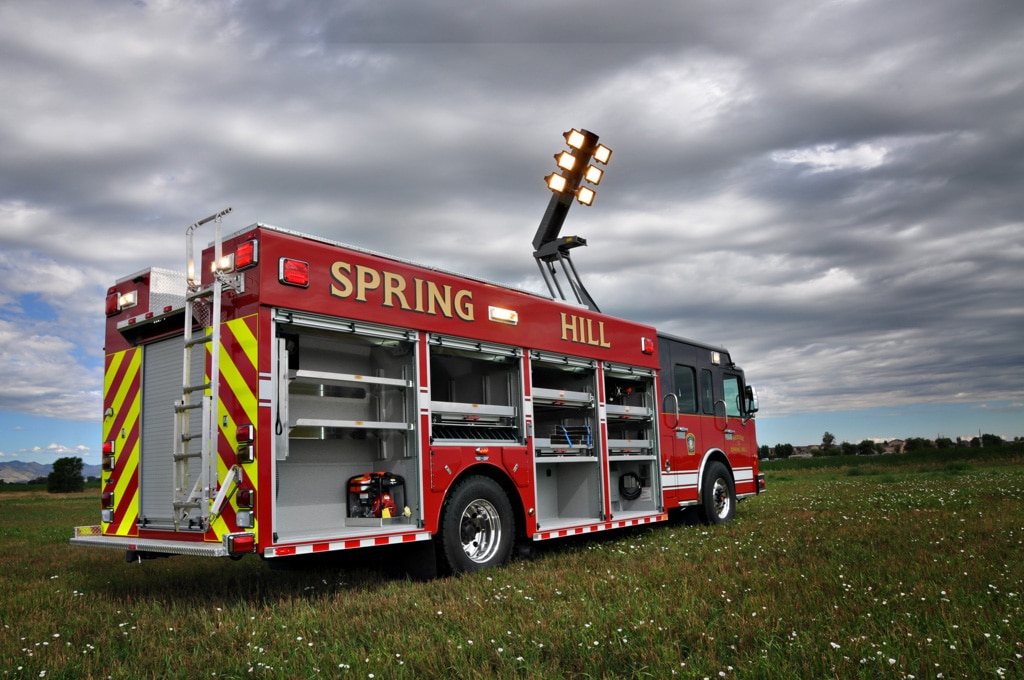

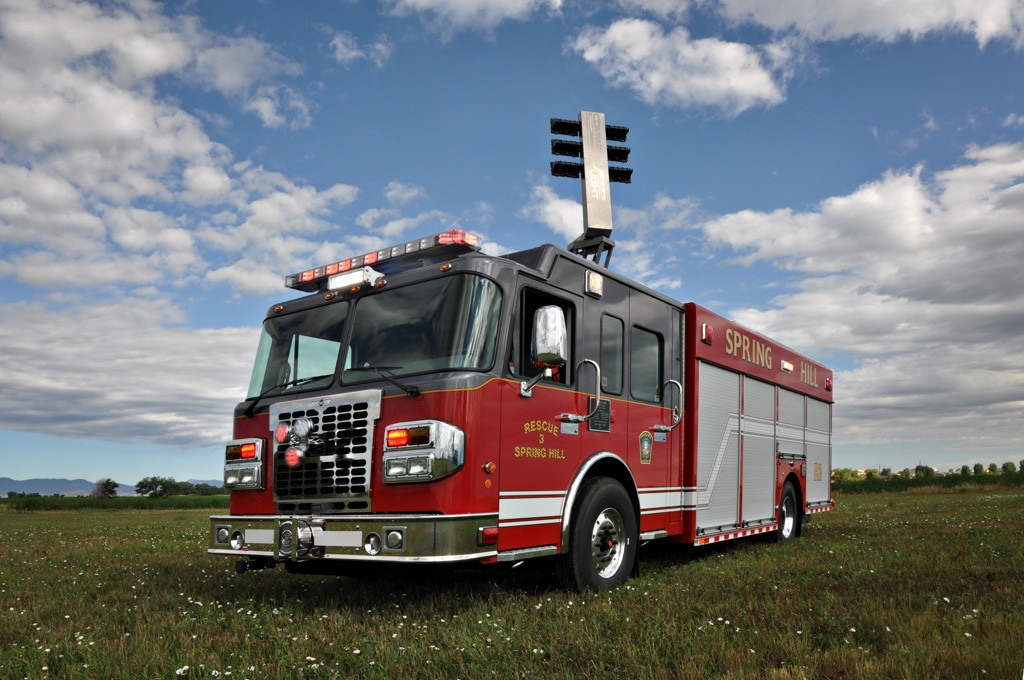

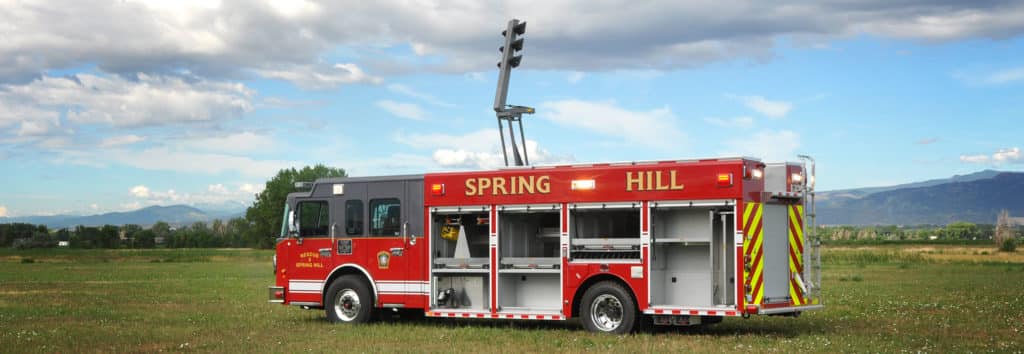

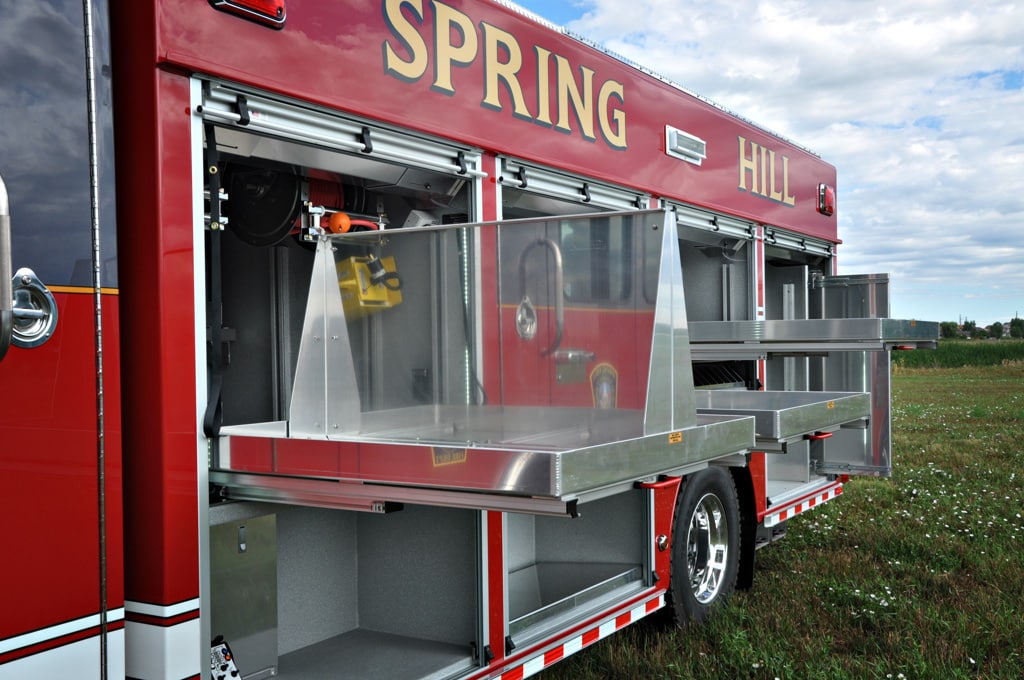

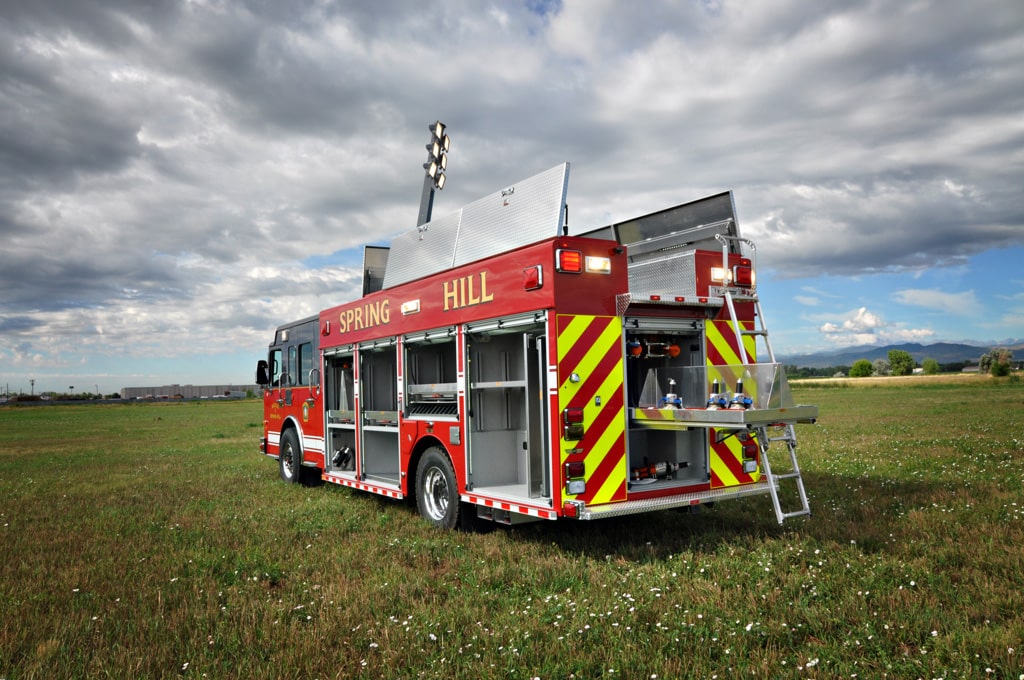

Built for the Spring Hill Fire Department in Tennessee, this Heavy Rescue’s aluminum body is constructed on a Spartan Metro Star LFD 10-inch chassis and houses a Cummins ISL9 400-horsepower engine. This new apparatus features Whelen scene lights, a Command Light 9,000-watt light tower, OnScene Solutions LED compartment lighting, a Holmatro electric hydraulic power unit, and much more.

For more information about this apparatus, choose one of the options below or contact us for more details.

Springhill-860

Download Spec Sheet

Chassis

Cab: Metro Star LFD w/ 10″ Raised Roof
Engine: Cummins ISL9, 400HP
Transmission: Allison EVS 3000
Wheelbase: 215.5″

Body

Material: Aluminum
Body Size: 20′
Overall Height: 10′ – 2.5″
Overall Length: 34′ – 2.5″

Features

Command Light 9,000-watt Light Tower
OnScene Solutions LED Compartment Lighting
Holmatro Electric Hydraulic Power Unit
David Clark Intercom System
Robinson ROM Roll-up Doors

Detailed Specs

Download Spec Sheet

View All Photos

Drawings

SpringHill_TN_PreCon1

Download Drawings
