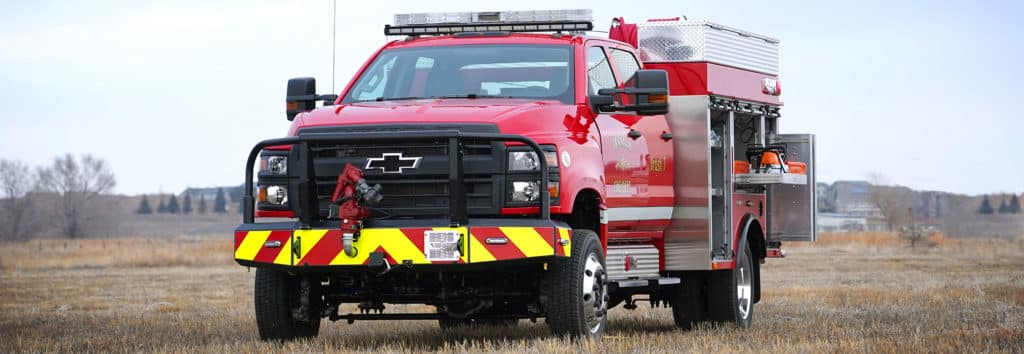

Franklin, TN T6 Brush Truck #1144

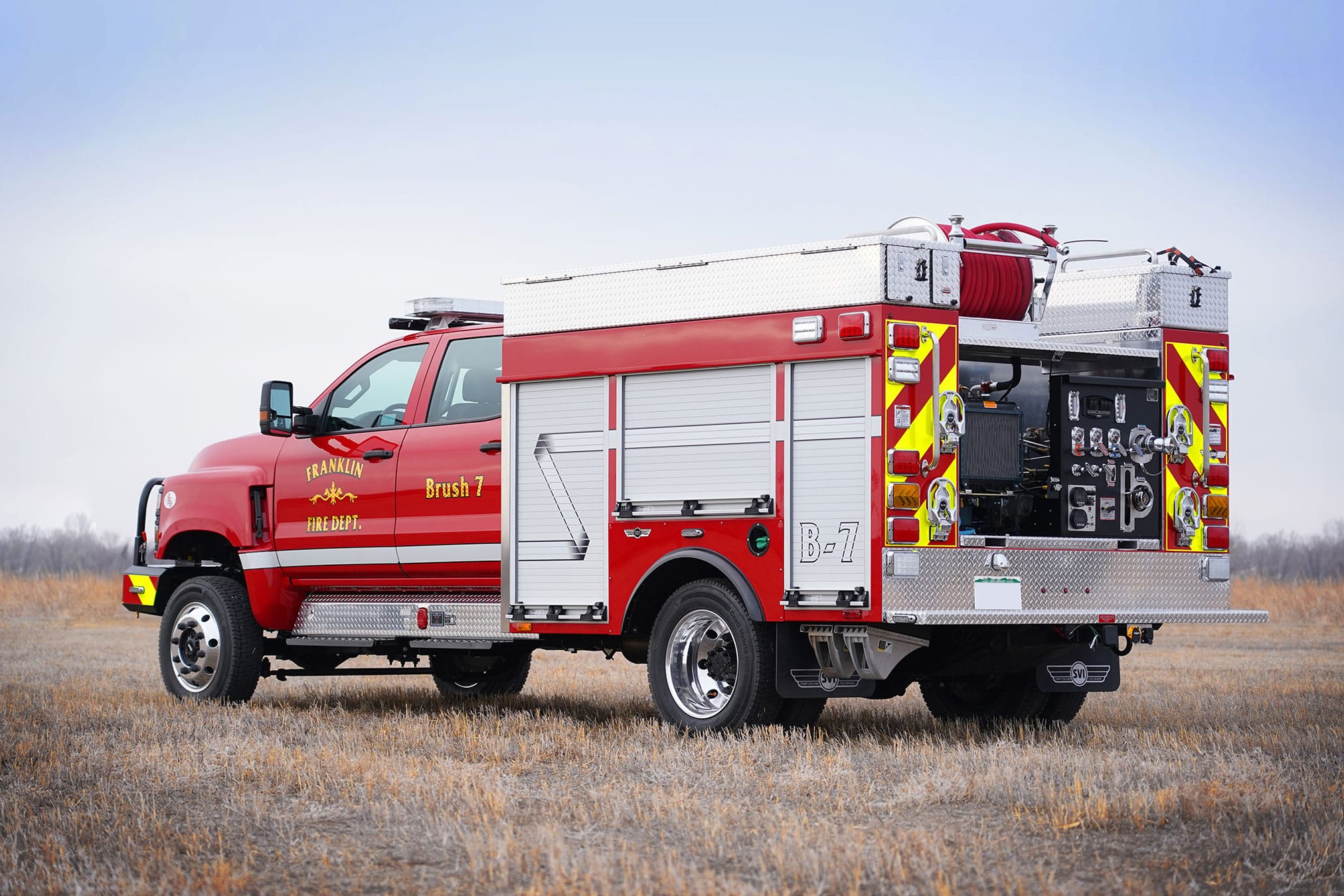

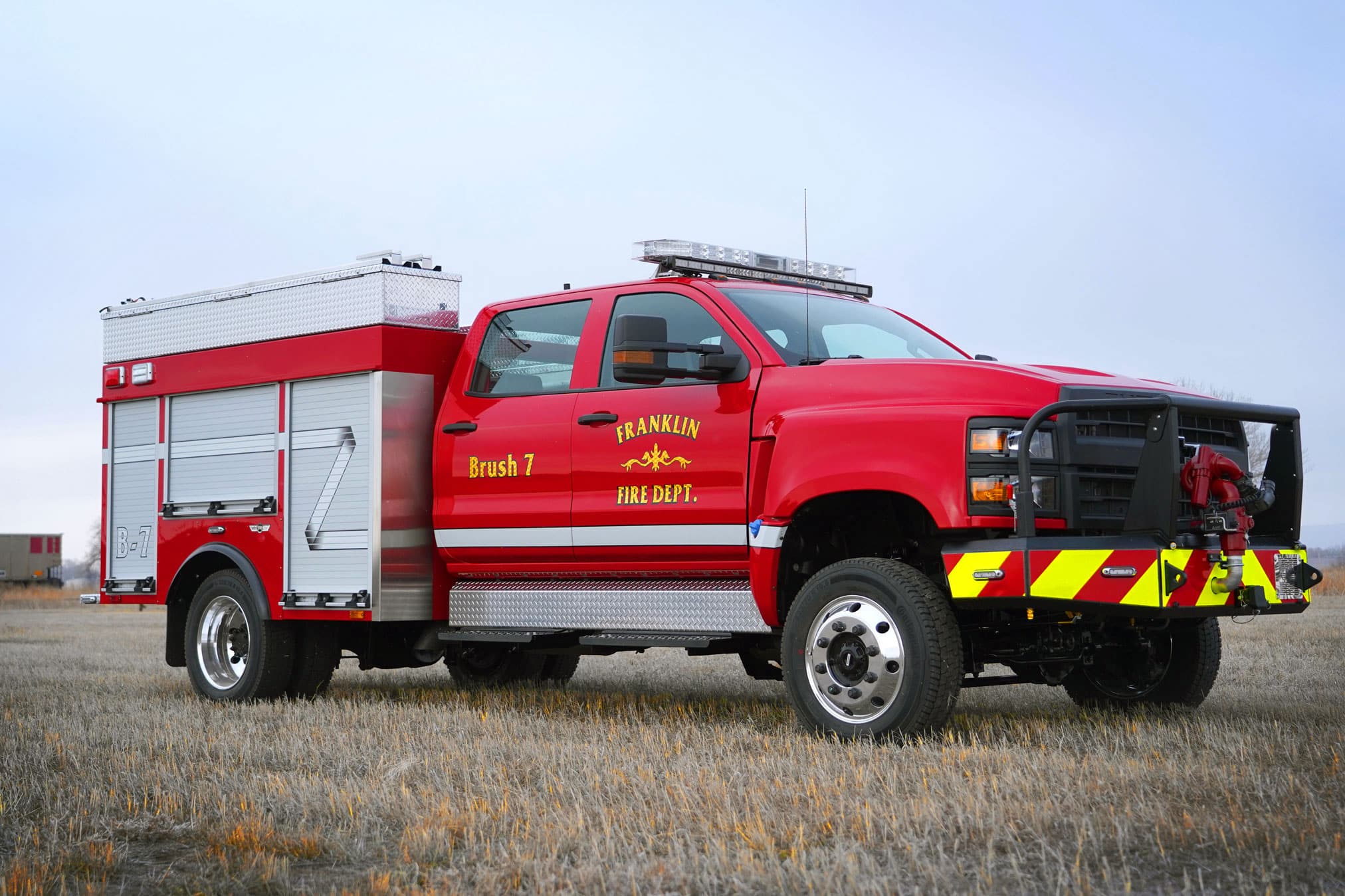

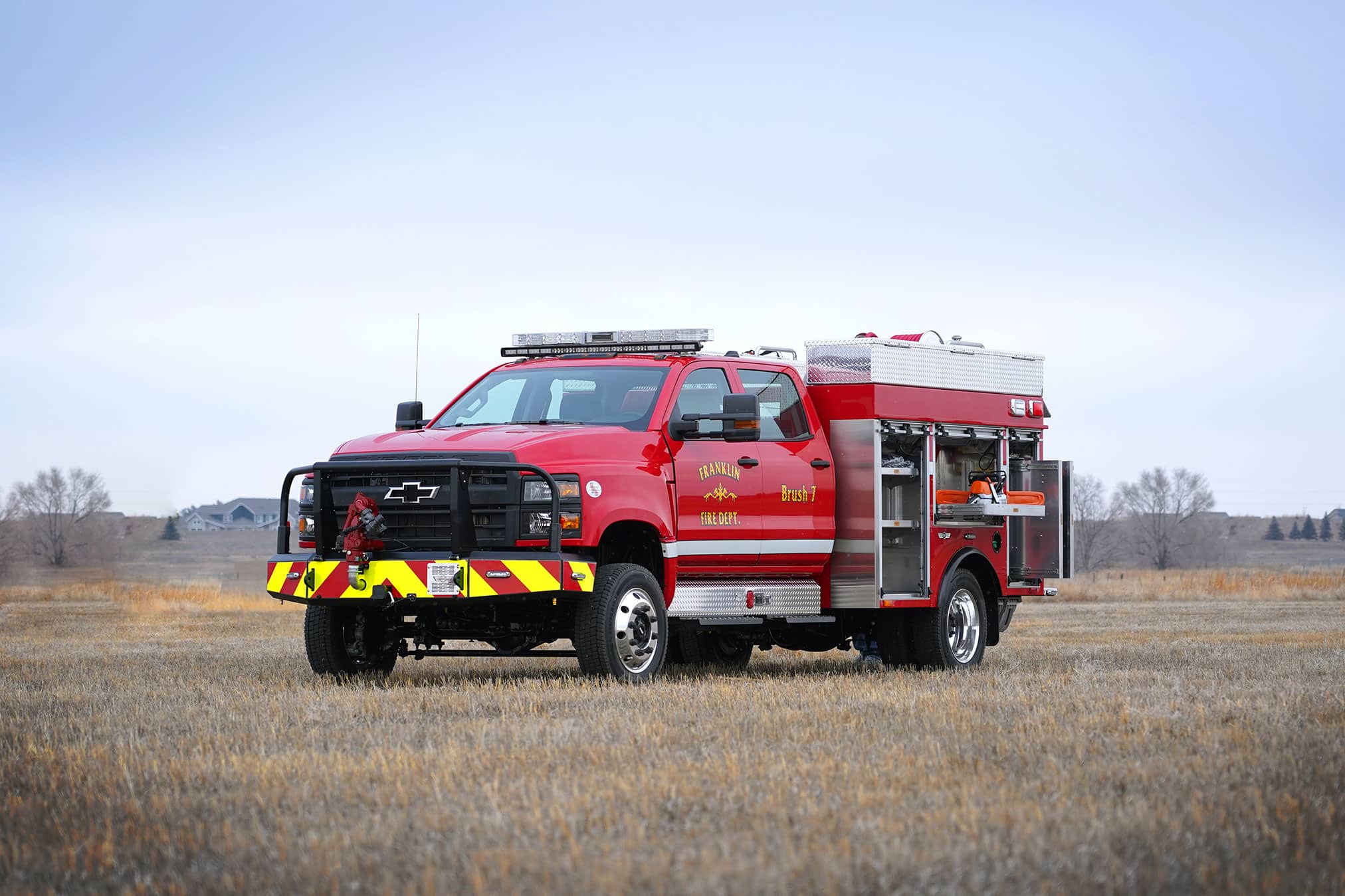

When spec’ing its new Type 6 Brush Truck, the Franklin, TN Fire Department chose an 8′ aluminum SVI body mounted on a Chevy Silverado MD Crew Cab 4×4 chassis with 350HP Duramax Turbo Diesel V8. This pump-and-roll apparatus comes with a 300-gal. Poly tank, Darley Fast Foam System, cab-controlled front-bumper ground-sweep nozzles and a custom front bumper with tilt-hood feature and much more.
For more information about this apparatus, choose one of the options below or contact us for more details.
Chassis
Cab: Chevy Silverado MD, Crew Cab, 4×4
Engine: Duramax 6.6L Turbo-Diesel V8
Transmission: Allison EVS 2700
Wheelbase: 175″
Body
Material: Aluminum
Body Length: 8′
Overall Height: 8′ 1″
Overall Length: 24′ 6″
Features
• 300-Gal. Poly Tank
• Darley Fast Foam System

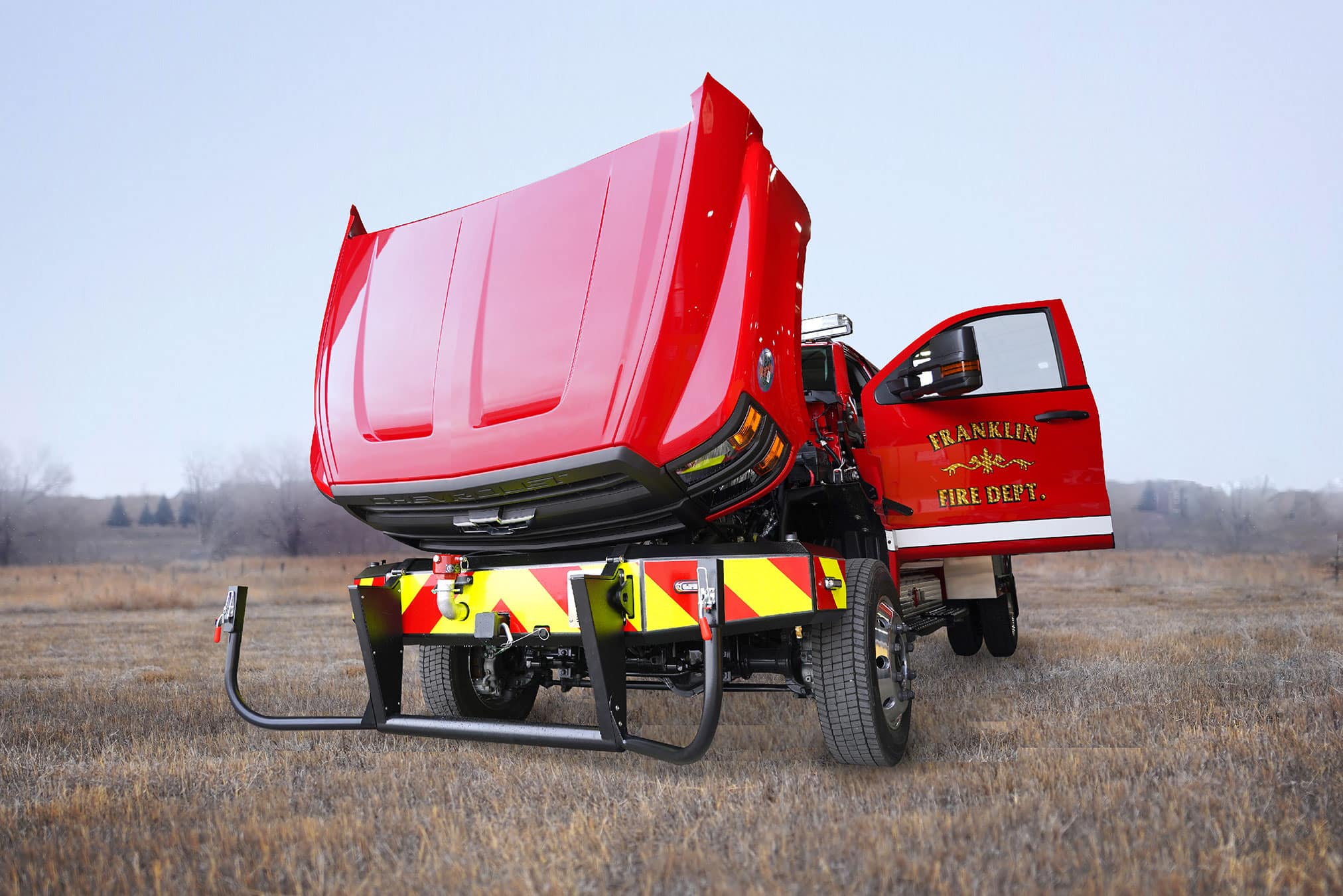

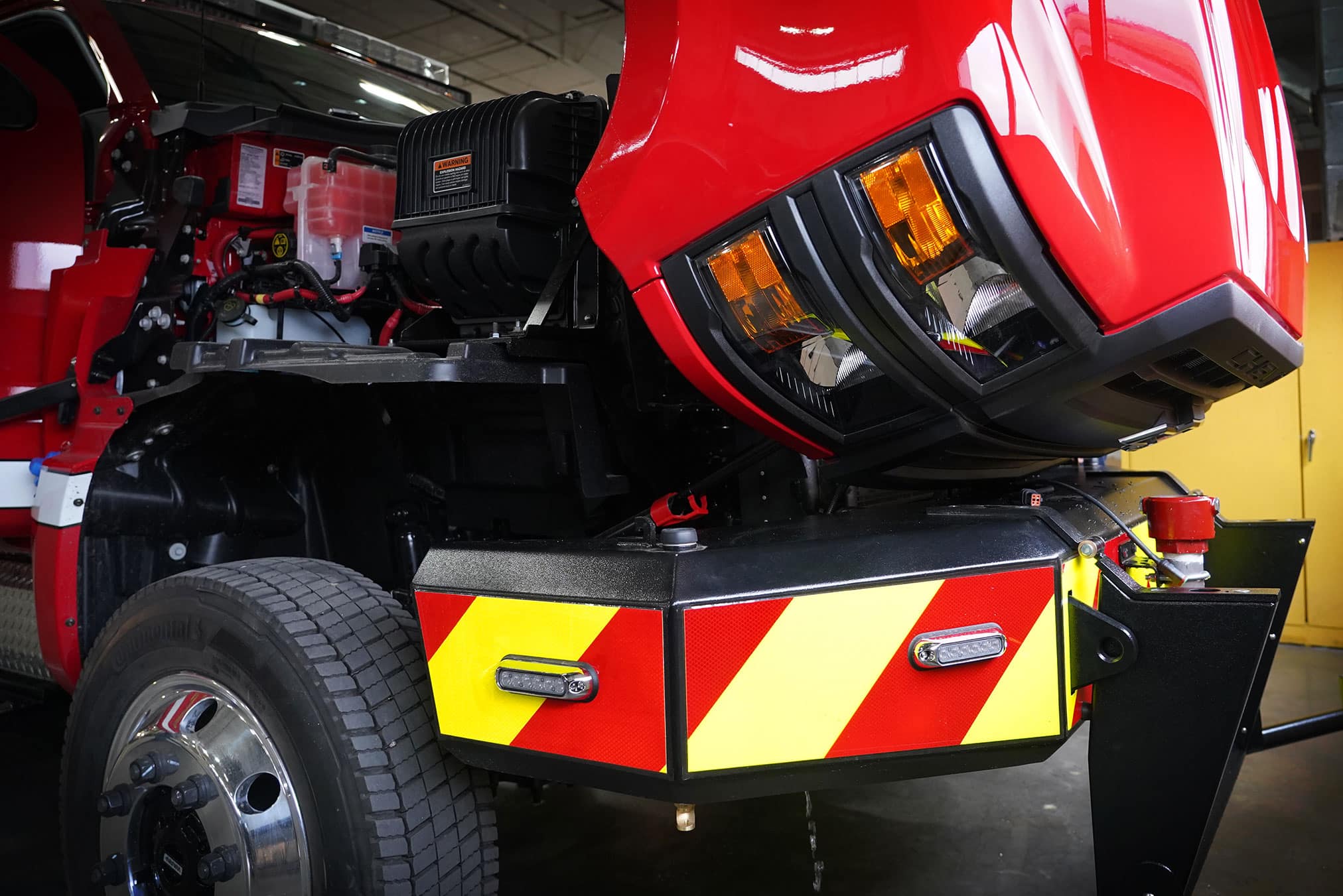

• Custom Front Bumper to Accommodate Tilt Hood

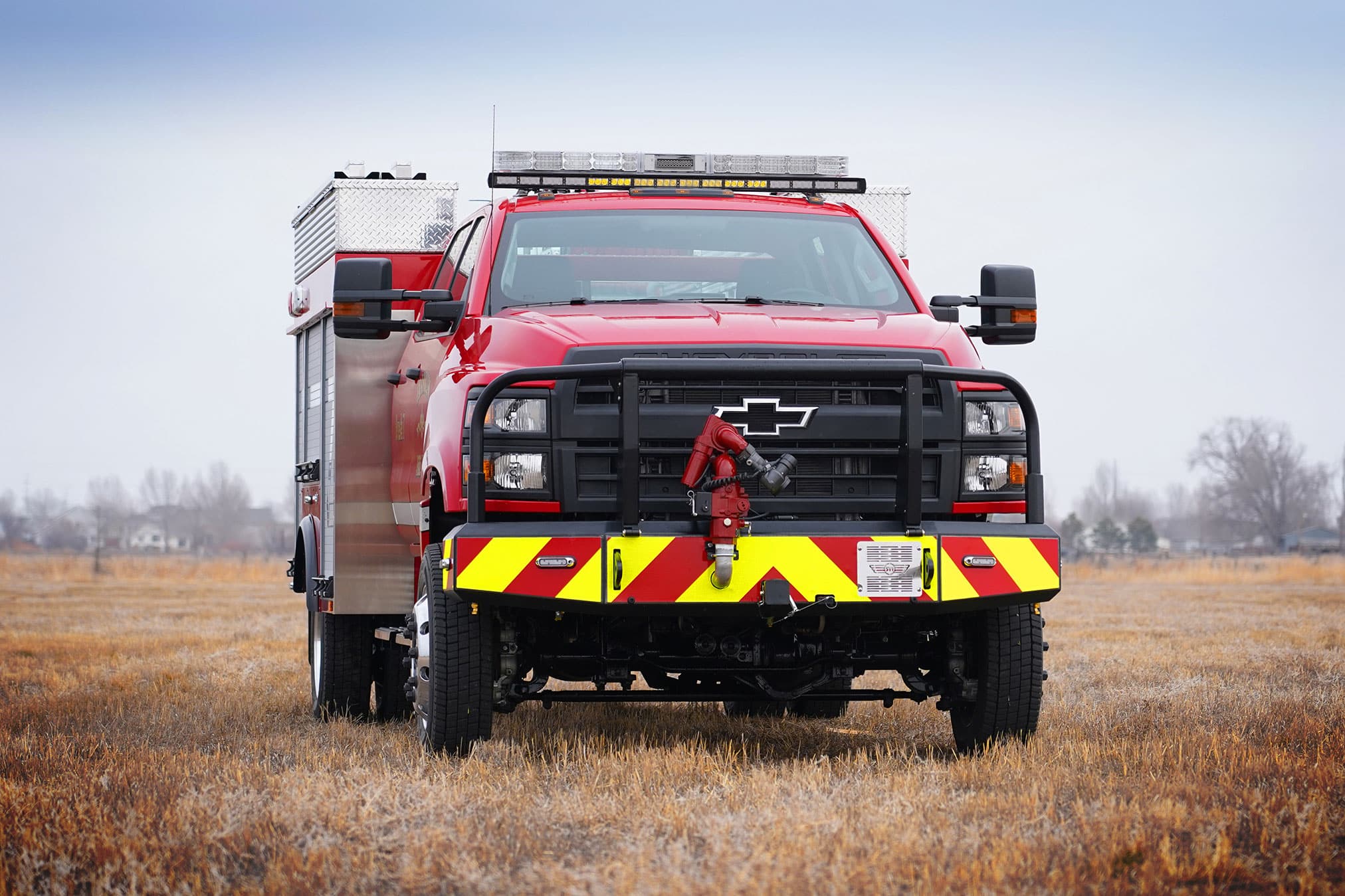

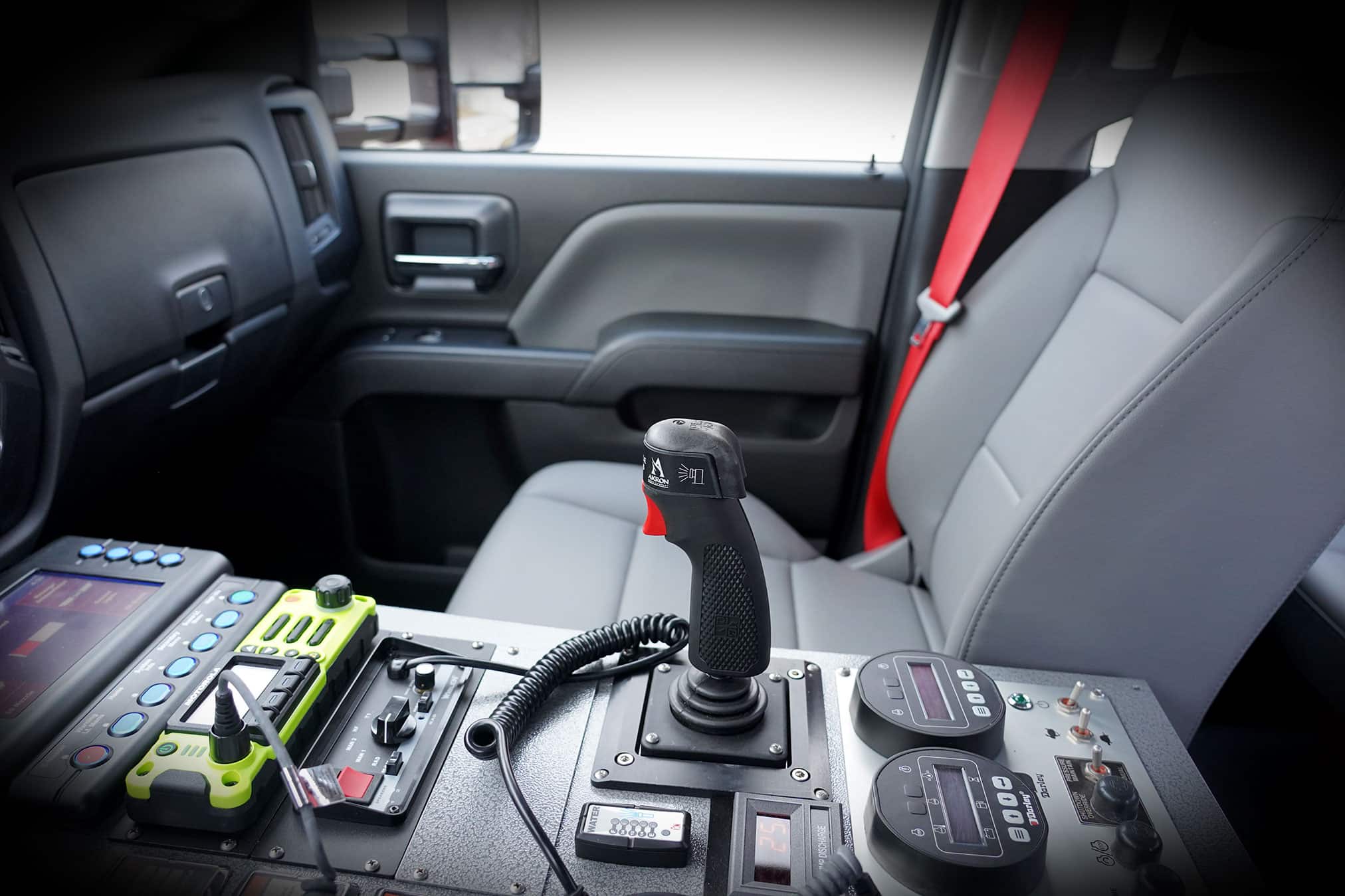

• Cab-Controlled Front-Bumper Ground-Sweep Nozzles
• Weldon V-MUX Multiplexed 12-Volt Electrical System

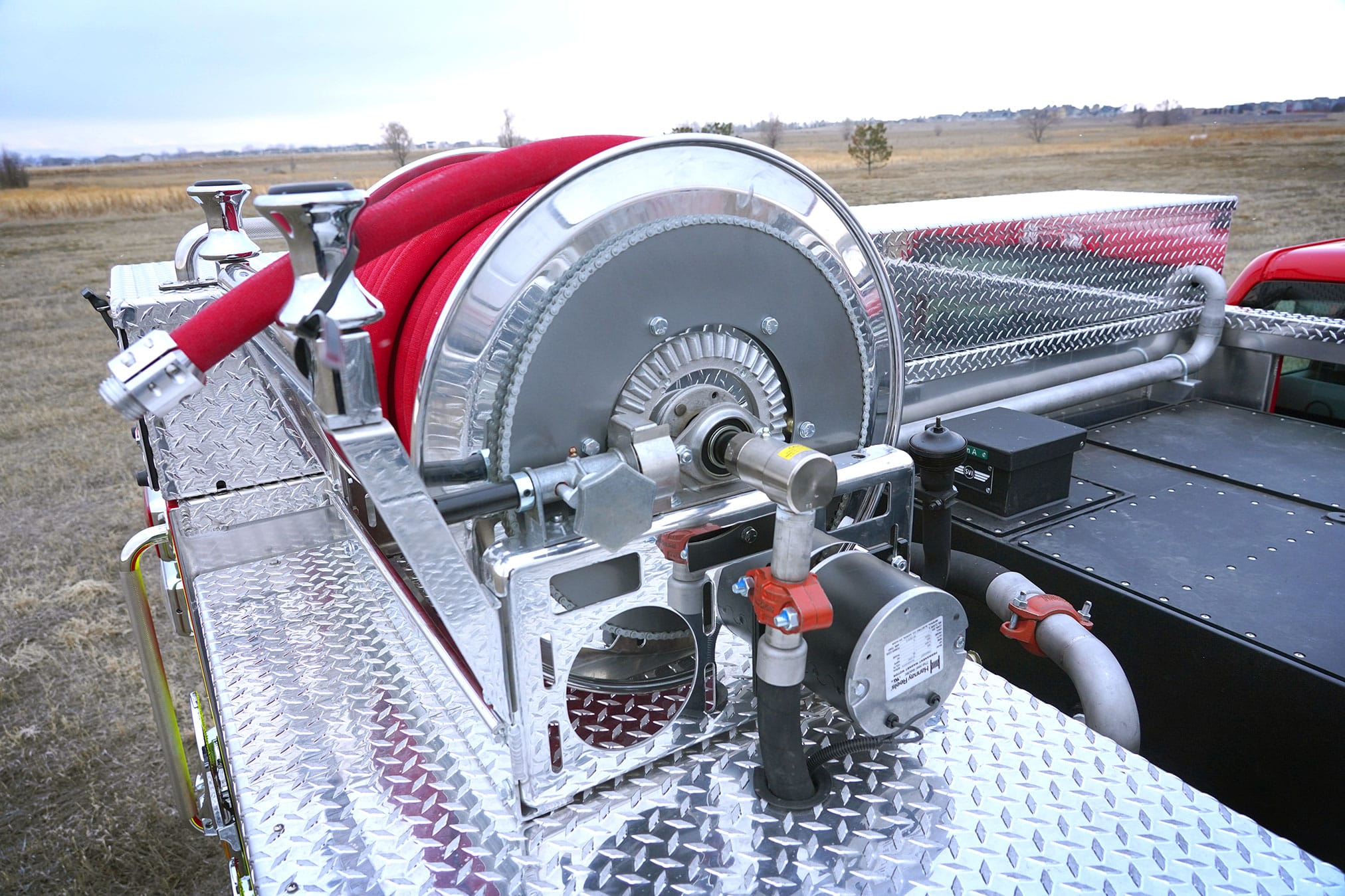

• Hannay F4000 Hose Reel

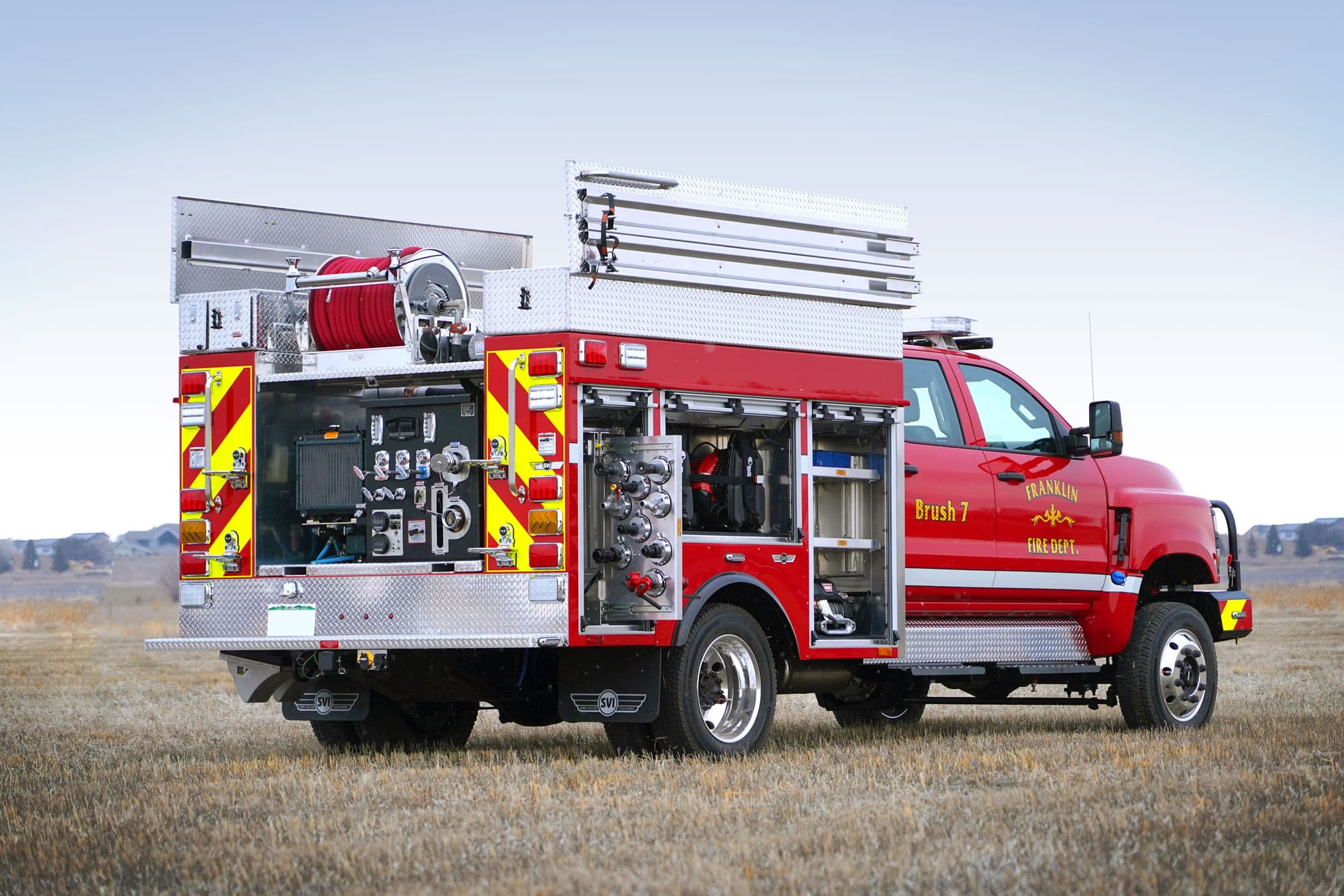

• Aluminum Slideout Smooth Vertical Tool Board(s)
• Warn Zeon 8,000-lb. 12 VDC Electric Winch
• Whelen C6 Series Super-LED Scene Lights
• OnScene Solutions LED Compartment Lights
