Elkhart Fire Department, IN Walk-Thru Heavy Rescue #1216

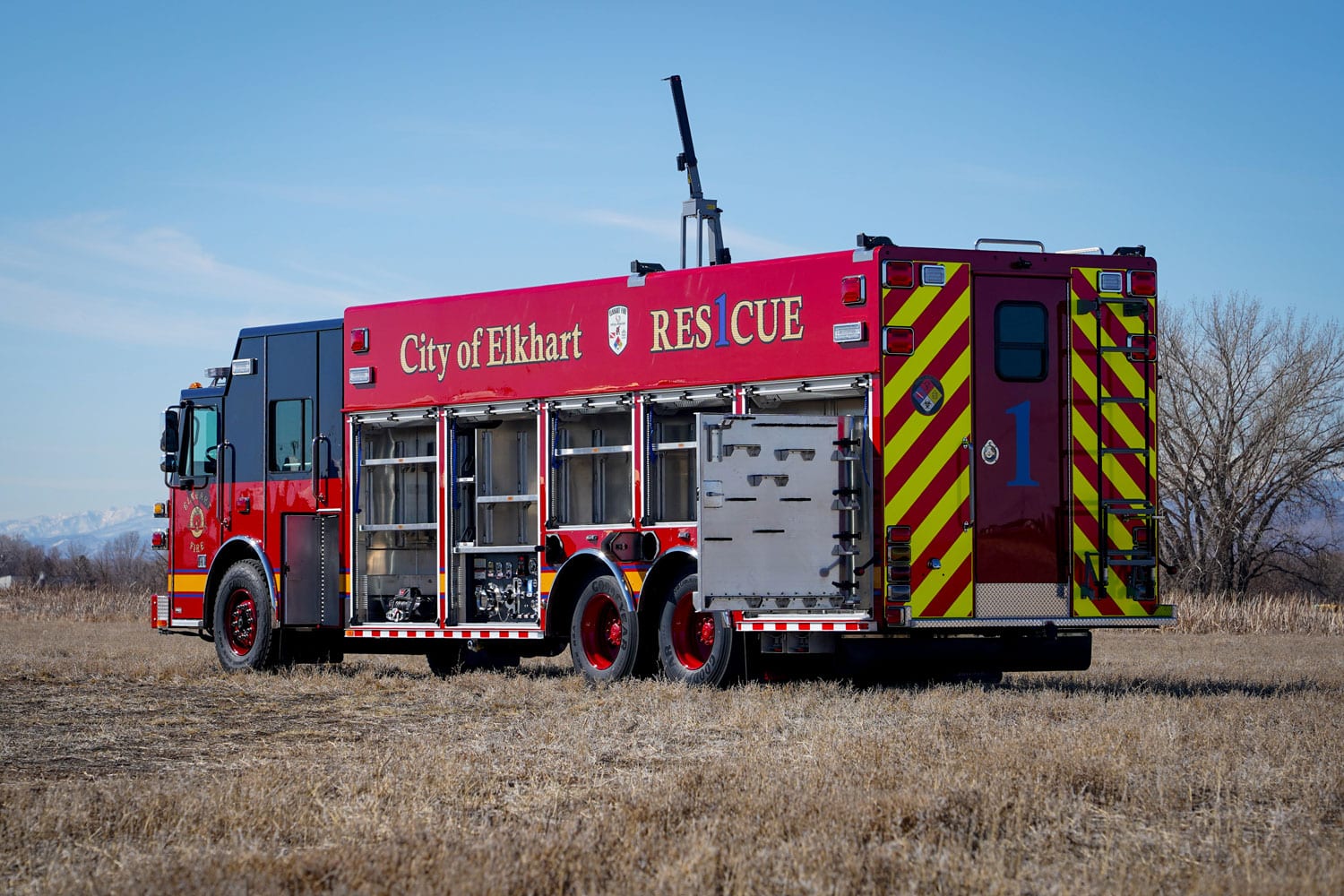

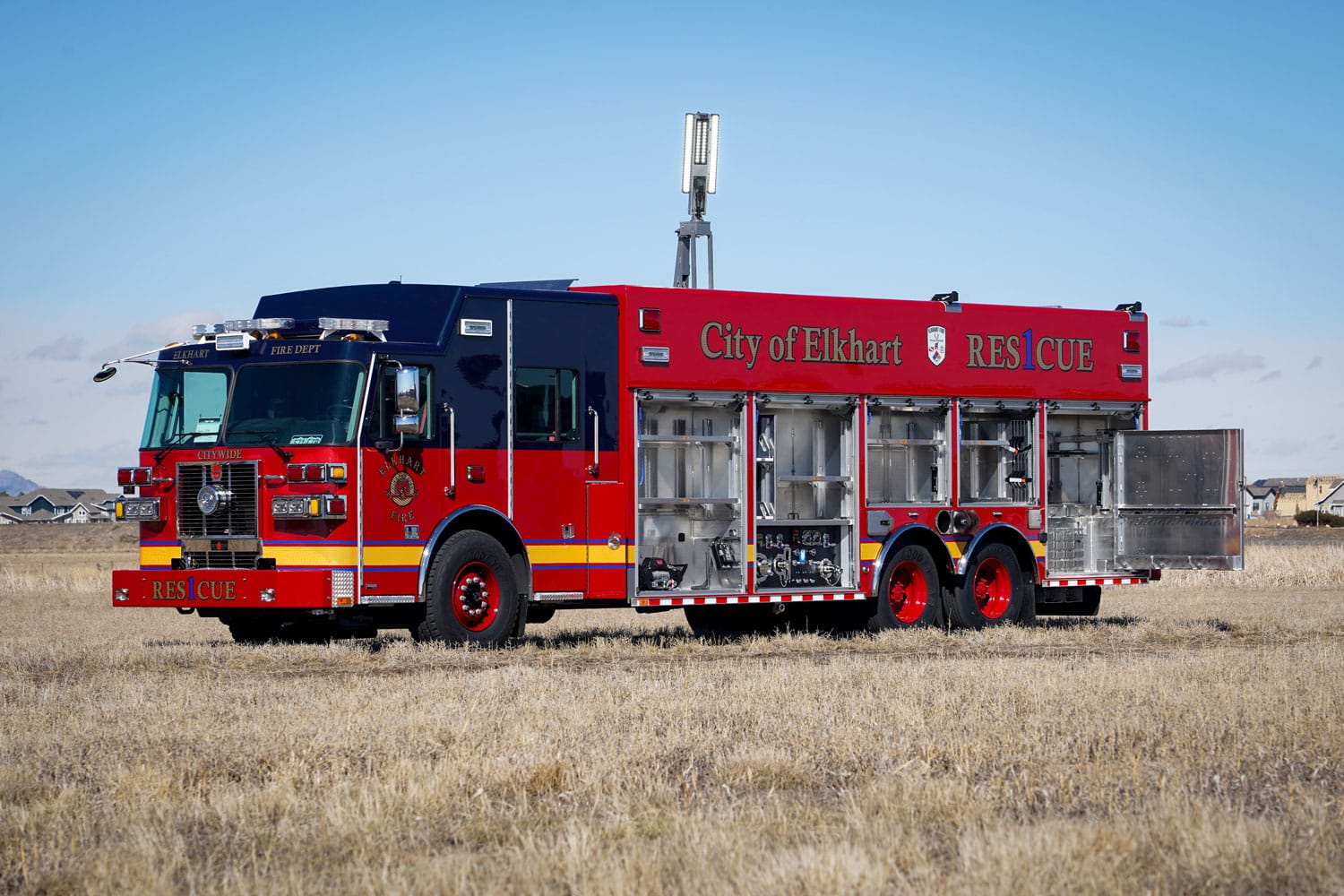

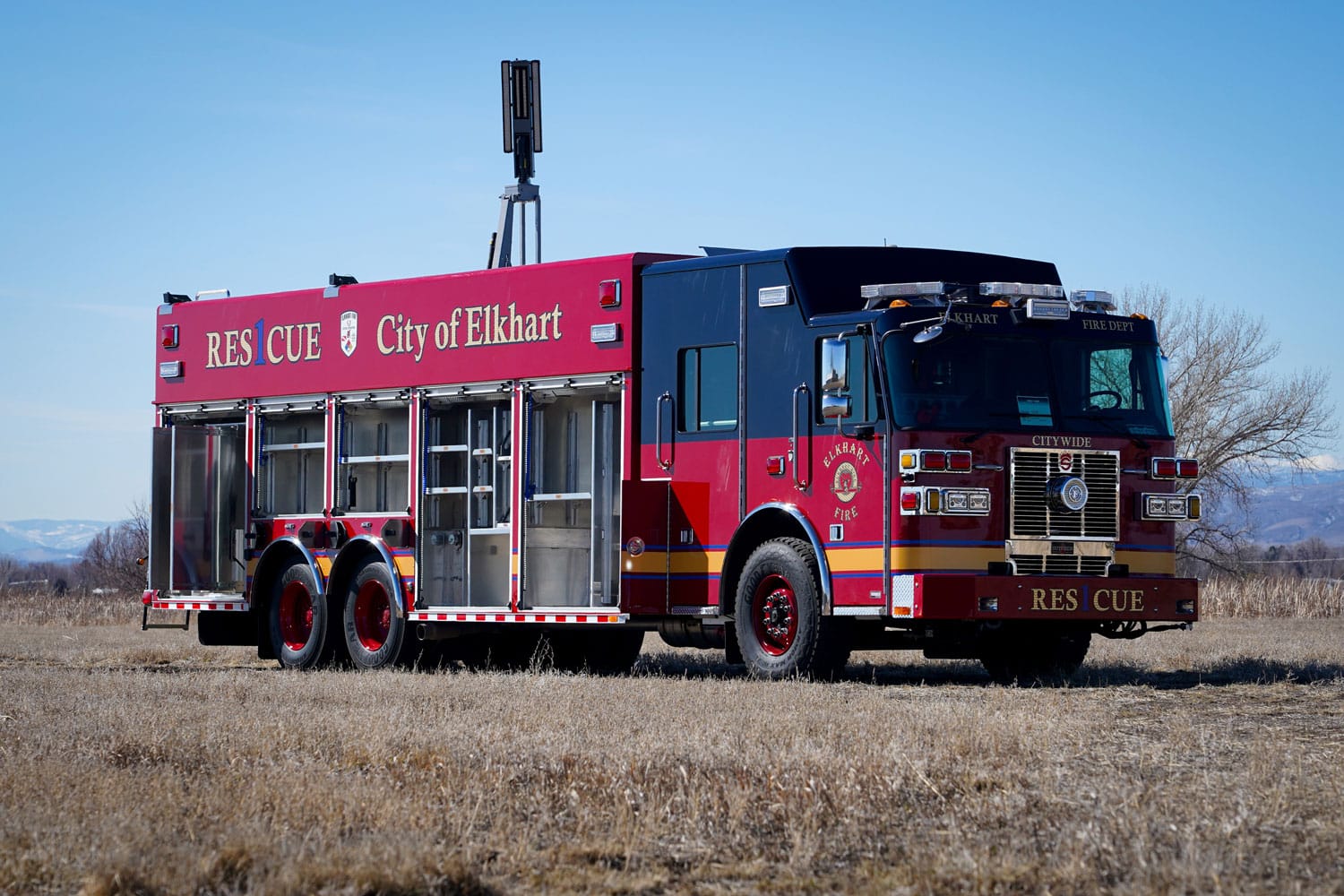

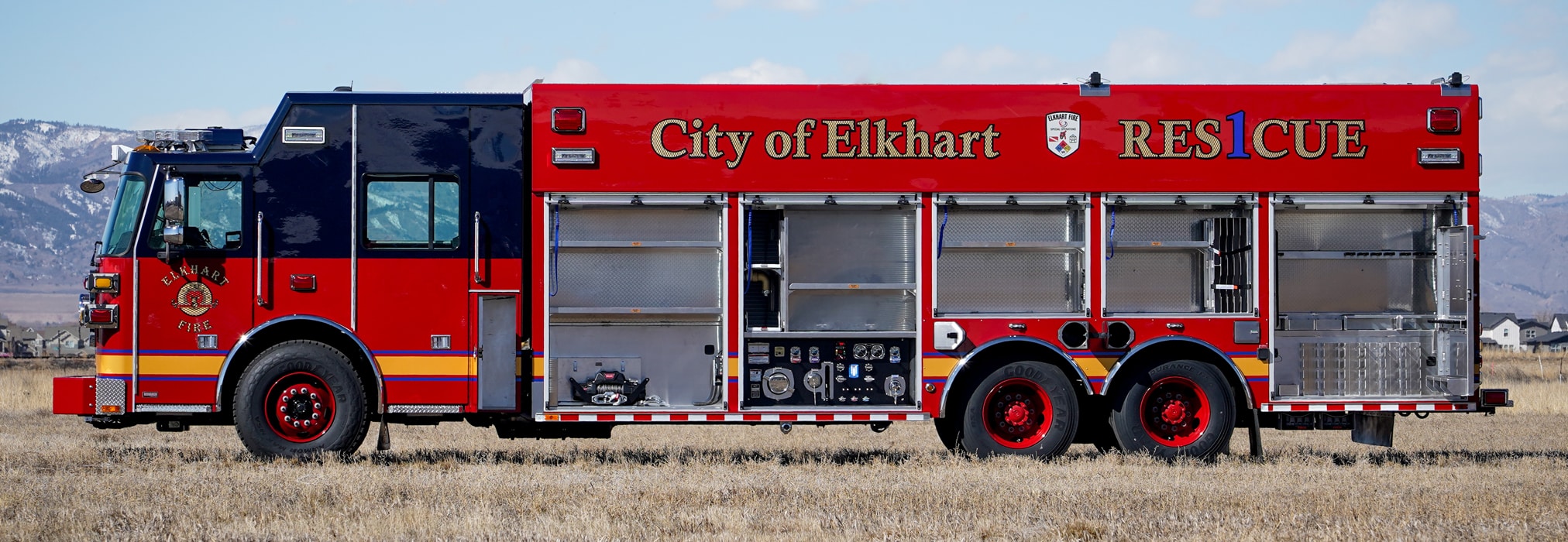

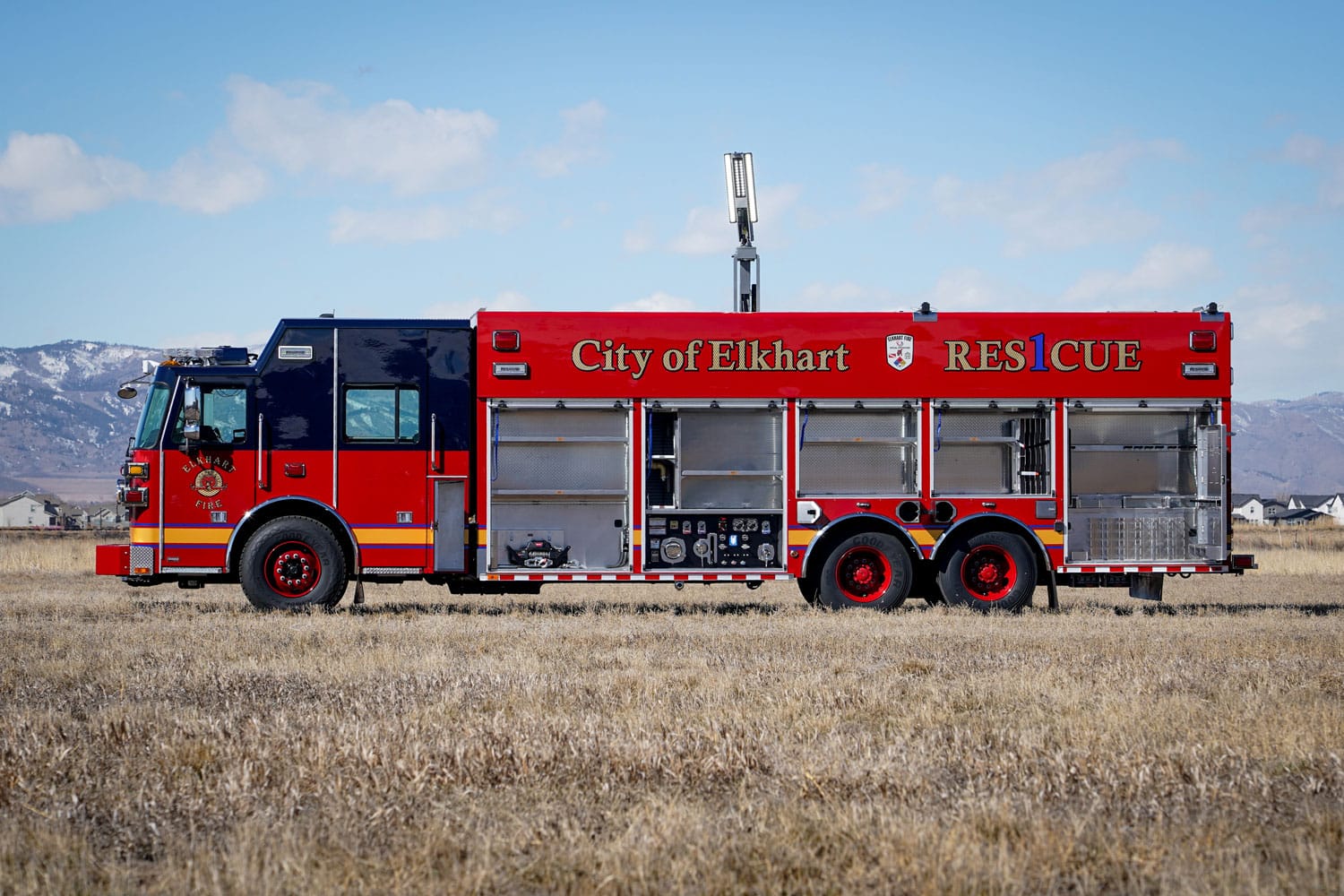

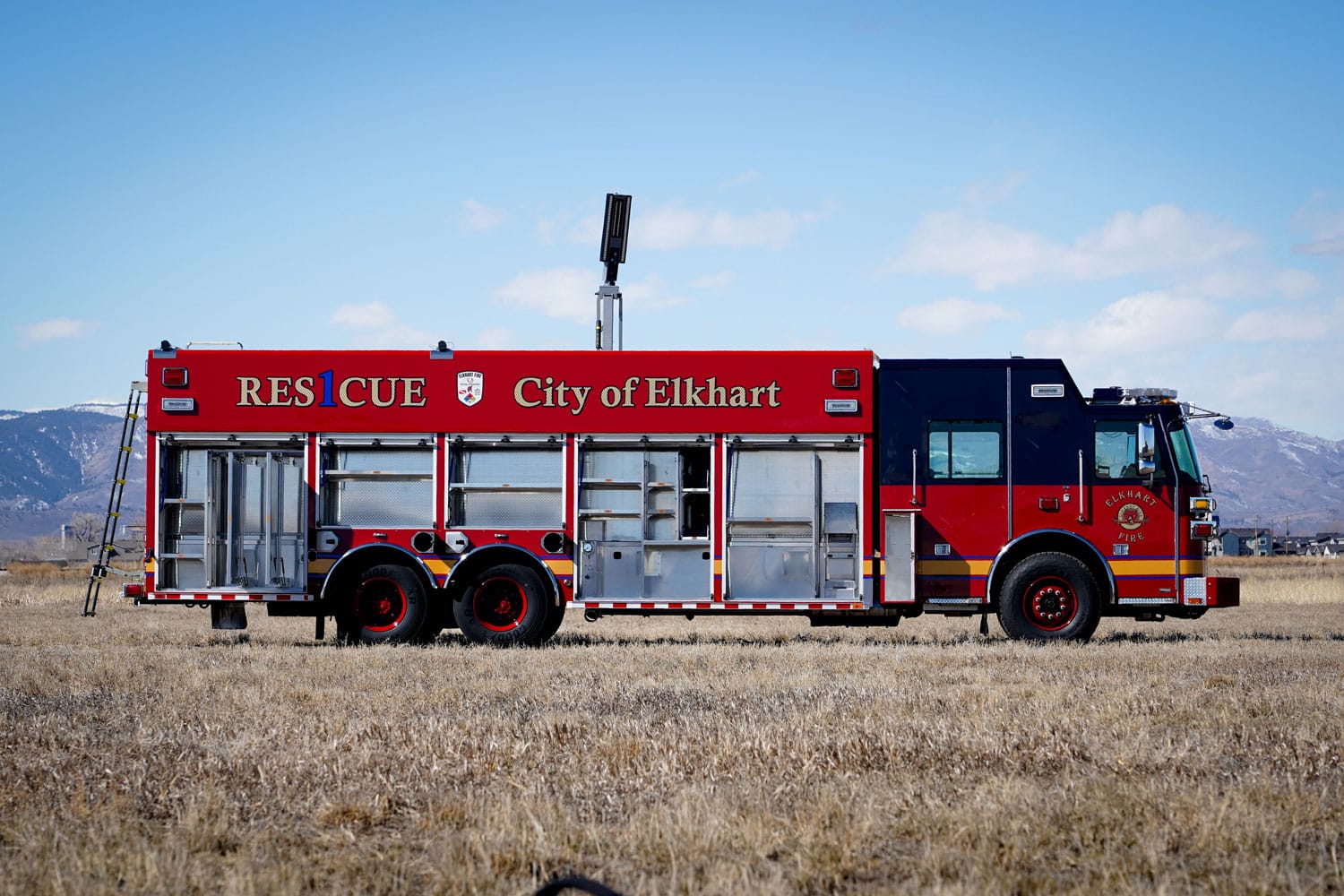

When spec’ing its new Heavy Rescue, Elkhart Fire Department chose a 26′ aluminum SVI body mounted on a Sutphen Monarch chassis, which houses an X12 Cummins engine and Allison 4000 6-speed transmission. This Heavy Rescue apparatus comes with a 750 GPM Hale MBP75-29 Pump Station, a 70″ x 60″ Swing-Out Tool Board, KL Slim Light Tower, and much more.
For more information about this apparatus, choose one of the options below or contact us for more details.
Chassis
Cab: Sutphen Monarch, 20” RR
Engine: Cummins X12
Transmission: Allison 4000 EVS
Wheelbase: 263″
Body
Material: Aluminum
Body Length: 26′
Overall Height: 11′-3”
Overall Length: 40’– 9″
Features

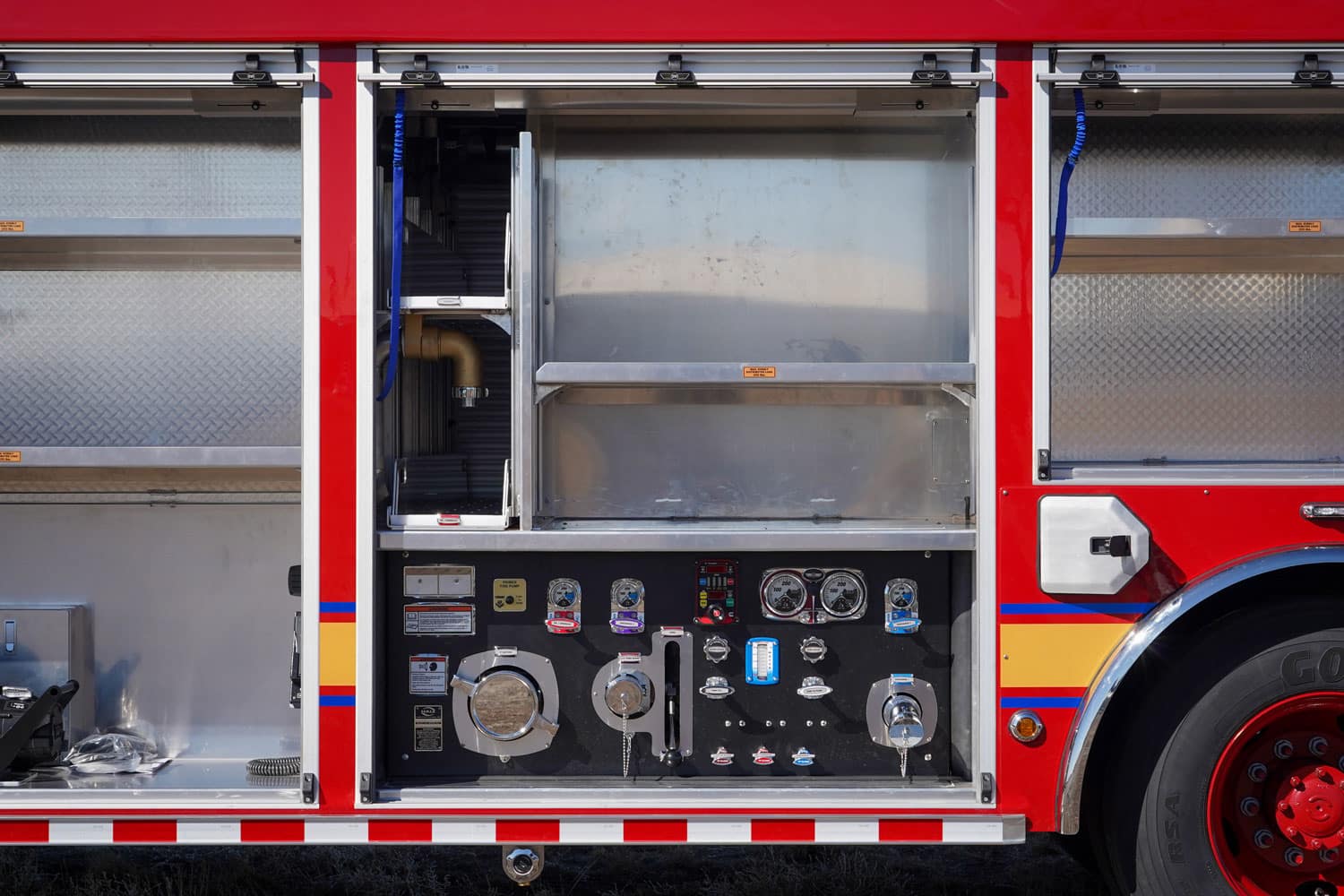

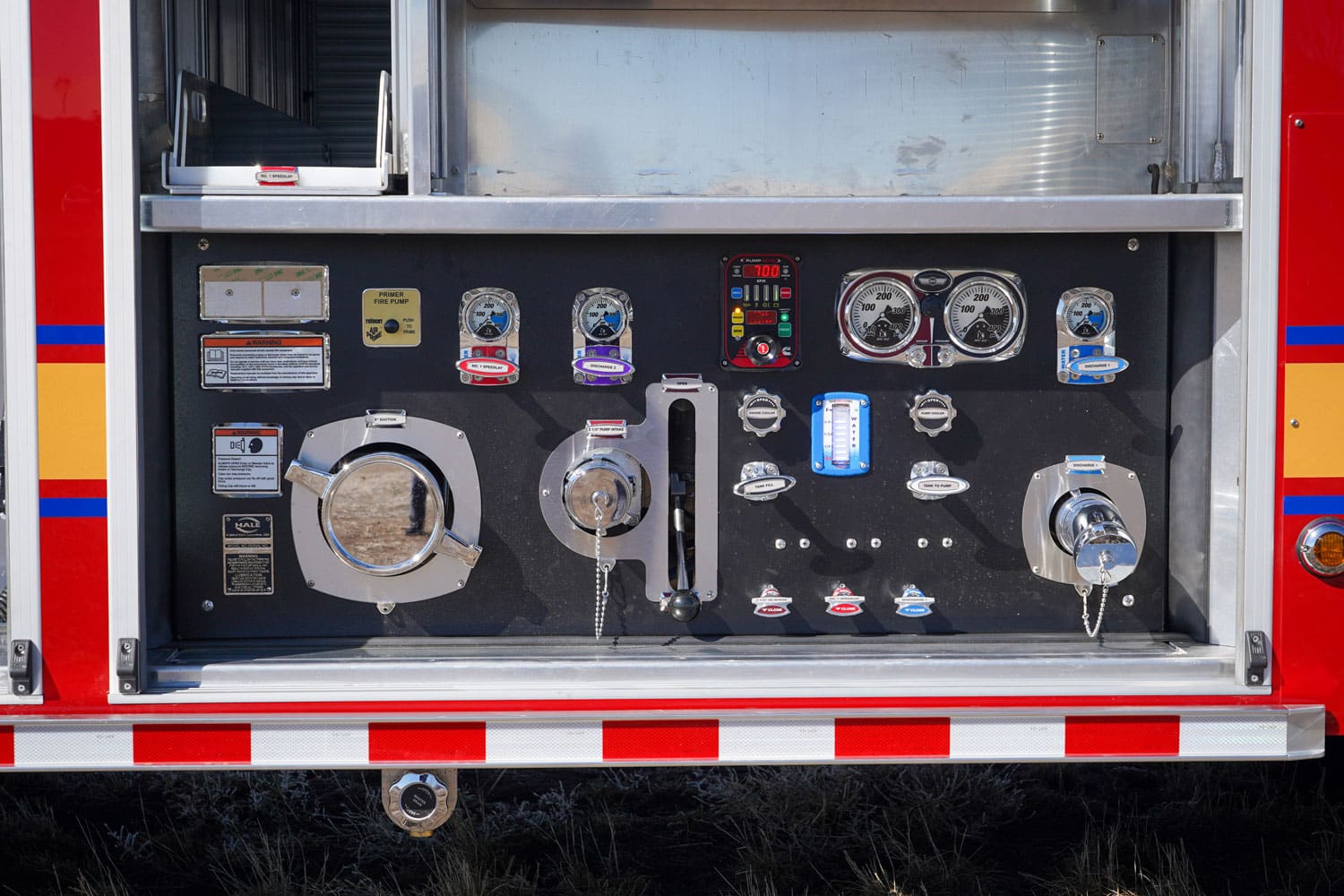

- Hale MBP75-29 750 GPM Pump Station
- 250-Gal.-Capacity Water Tank

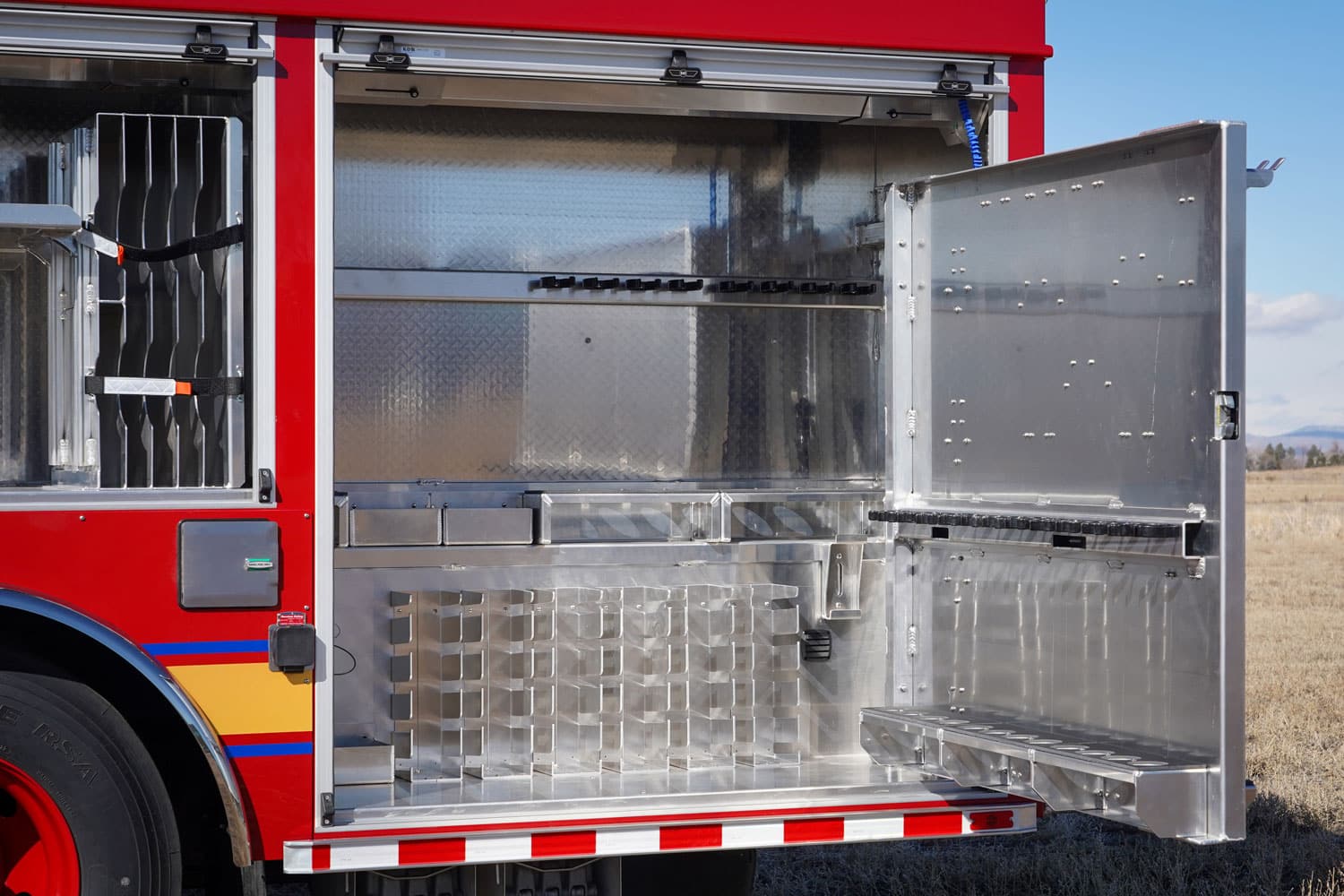

- 70” x 60” Heavy-Duty Swing-Out Tool Board
- (2) Aluminum Vertical Tool Boards
- Pivot-Guided Boat Motor Storage
- Portable Warn Zeon 8-S Winch
- Removable Rope Anchors
- Command Light KL Slim Light Tower
- FRC Spectra Max Scene Lighting
- OnScene Solutions Access LED Compartment Lighting

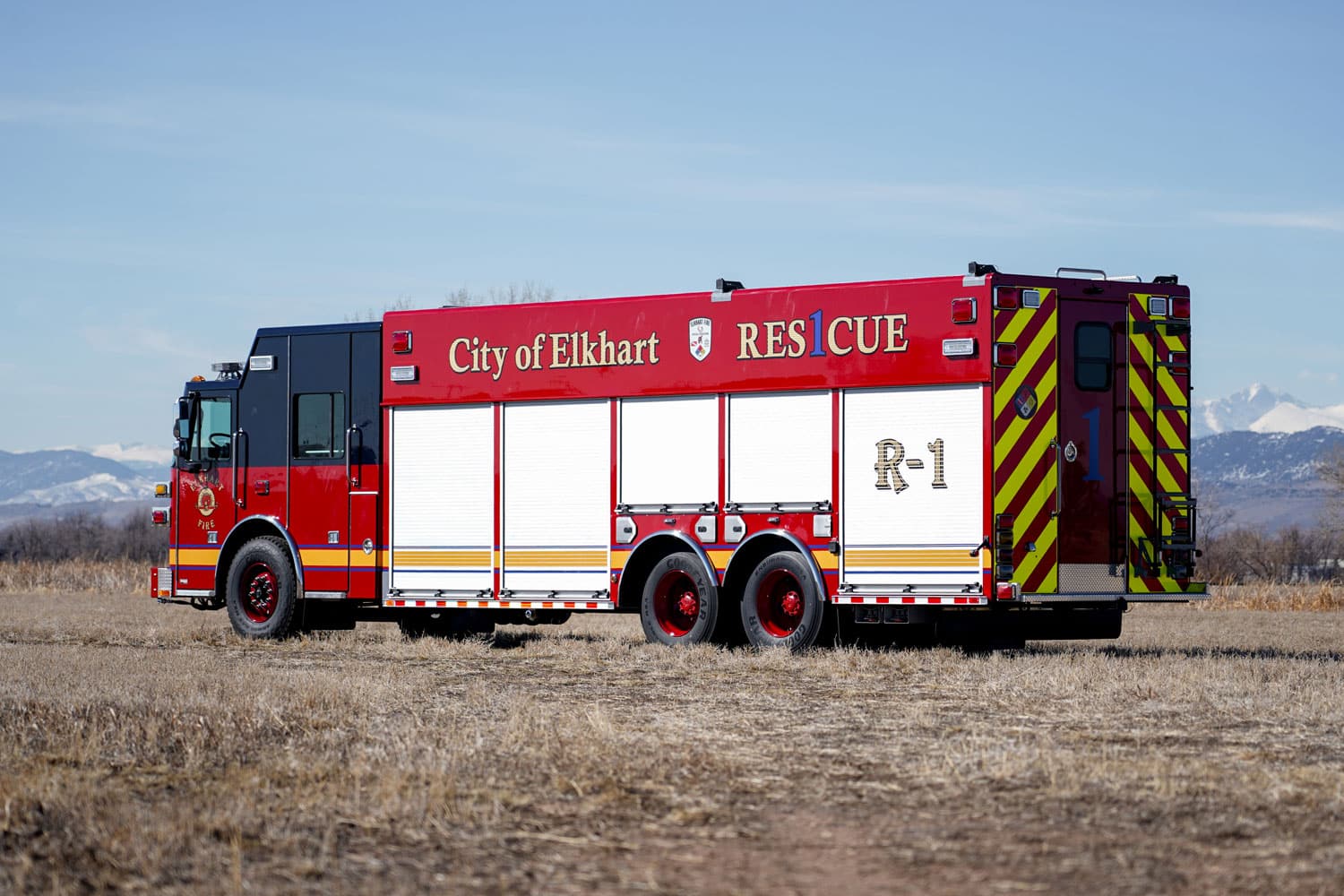

- ROM Series IV Roll-Up Compartment Doors
